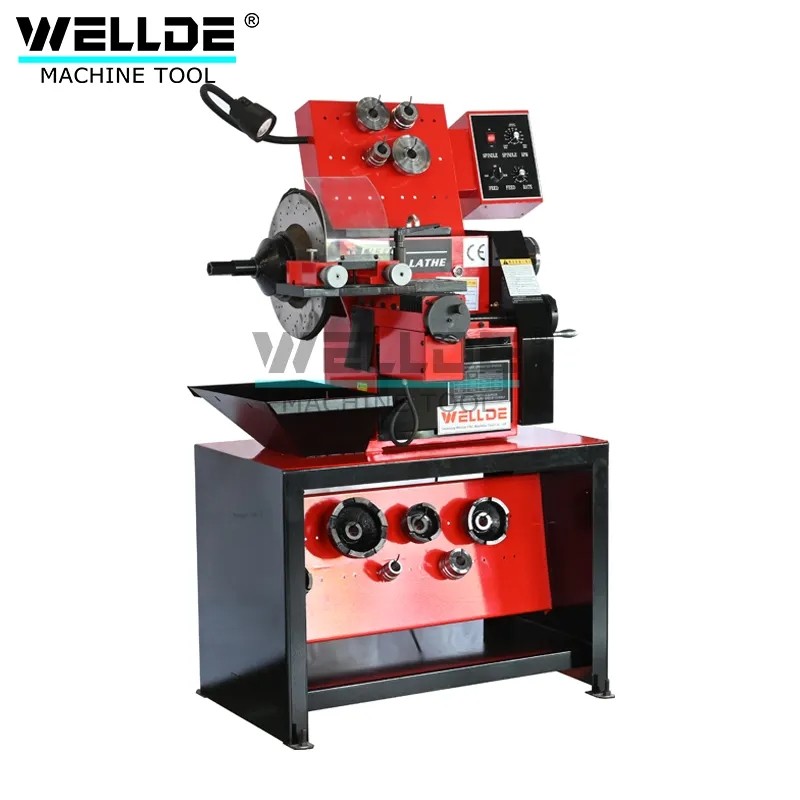

Brake disc drum lathe C9372
Product Introduction:

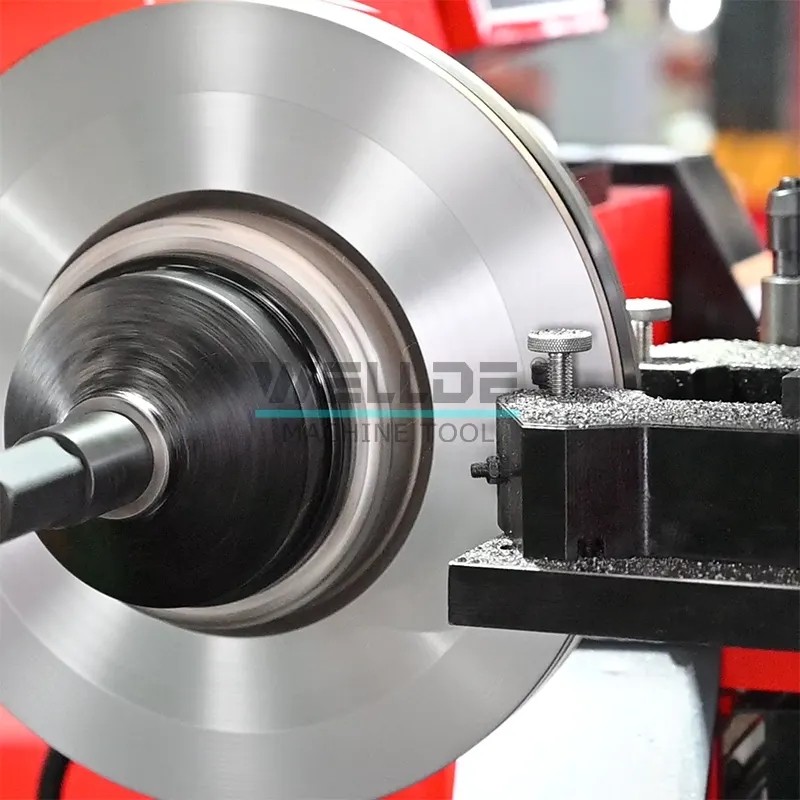

The C9372 machine tool is mainly used for boring and repairing brake drums and brake pads in pickup trucks, cars, and micro cars. Using the outer ring of the brake drum bearing as the positioning reference, the clamping, boring, and repair of the brake drum can be easily achieved with a file and cone sleeve.
specifications:
| Model | C9372 |
| Rotor diameter | 4"-24"(102mm-610mm) |
| Maximum rotor thickness | 2.85"(73mm) |
| Drum diameter | 6"-28"(152mm-711mm) |
| Drum depth | 9"(229mm) |
| Flywheel diameter | 6"-24"(152mm-610mm) |
| Spindle weight capacity(standard 1" Arbor) | 1501bs(68kg) |
| Spindle speed | 70-320RPM |
| Feed rates-rotor and drum | 0"-0.026"(0mm-0.66mm) |
| Feed rate per minute | 2.54"(64.5mm) |
| Motor | 110V/220V 50/60HZ |
| Shipping weight | 300kg |
| Dimension (L×W×H) | 1130mm×1720mm×1750mm |
