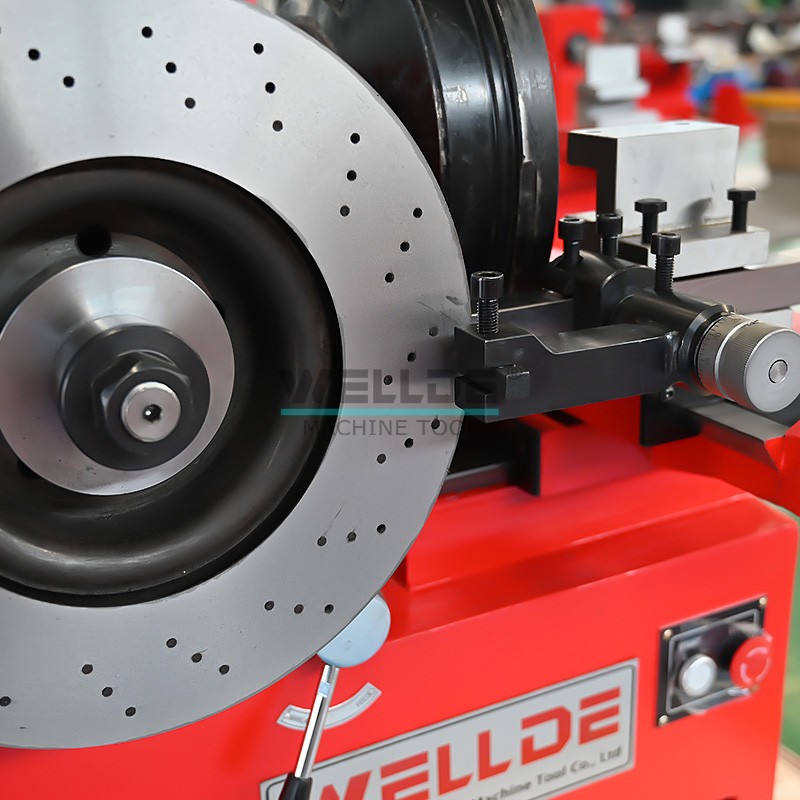

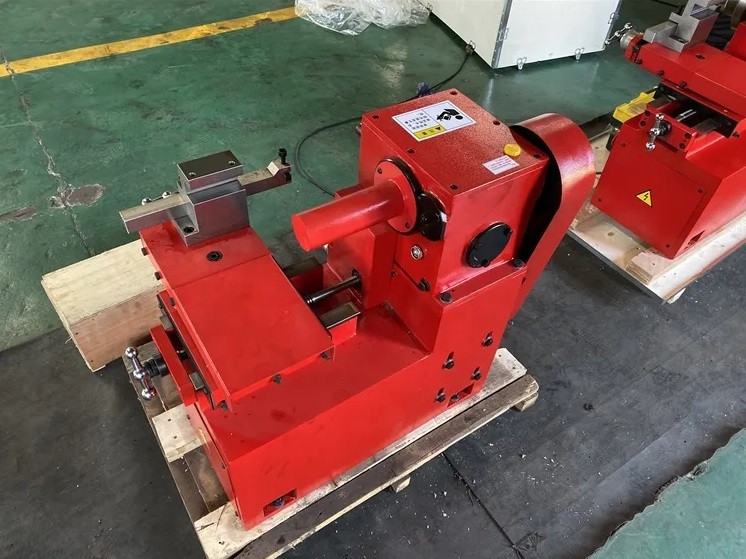

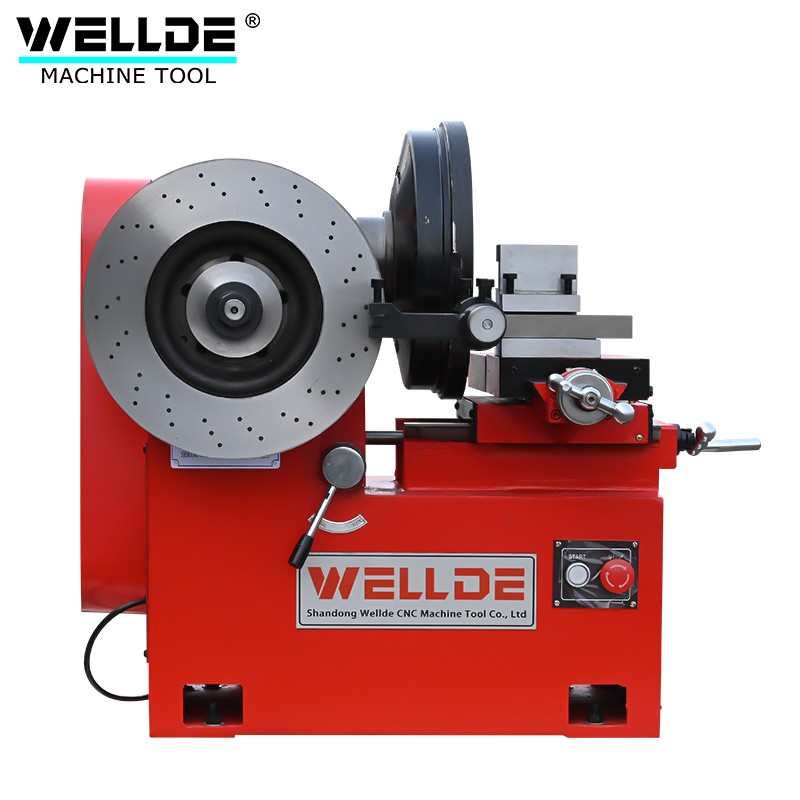

C9335 brake disc and drum repair lathe

Product Introduction:

Used for repairing brake drums/discs in automobiles, with a maximum diameter of 350mm. C9335 truck/bus brake drum adjustment and disc lathe

Suitable for automotive brake drums and discs

specifications:

Unit	Main Specifications		C9335	C9335A
mm	Range of Processing Diameter	Brake Drum	180-350	180-350
mm	Range of Processing Diameter	Brake Disc	180-350	180-350
r/min	Rotating Speed of Work-piece		90	90
mm	Max. Travel of Tool		100	100
mm/r	Feeding capacity		0.15	0.16
kw	Motor Power		1.1	1.1
mm(L x W x H)	Overall Dimensions		695 x 565 x 635	695 x 565 x 635
mm(L x W x H)	Packing Dimensions		750 x 710 x 730	750 x 710 x 730
kg	N.W/G.W		200/260	200/260
