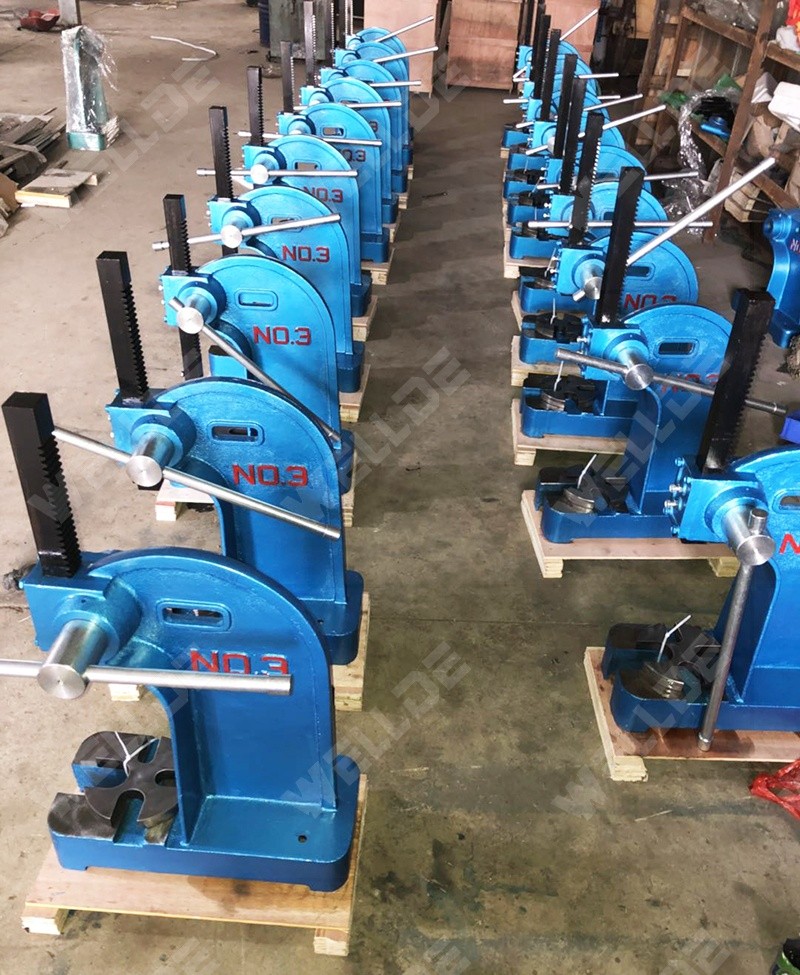

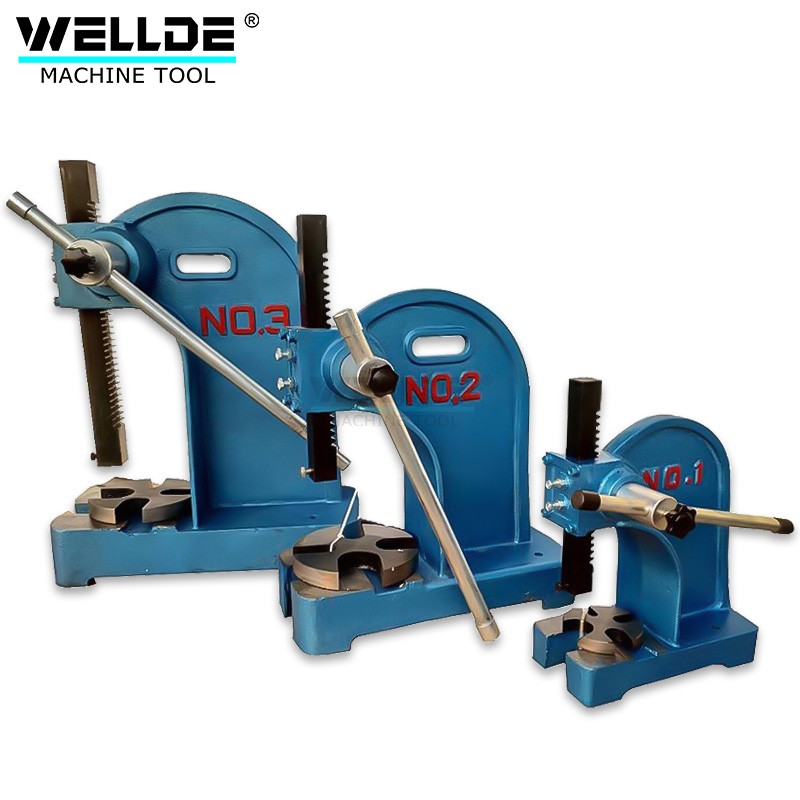

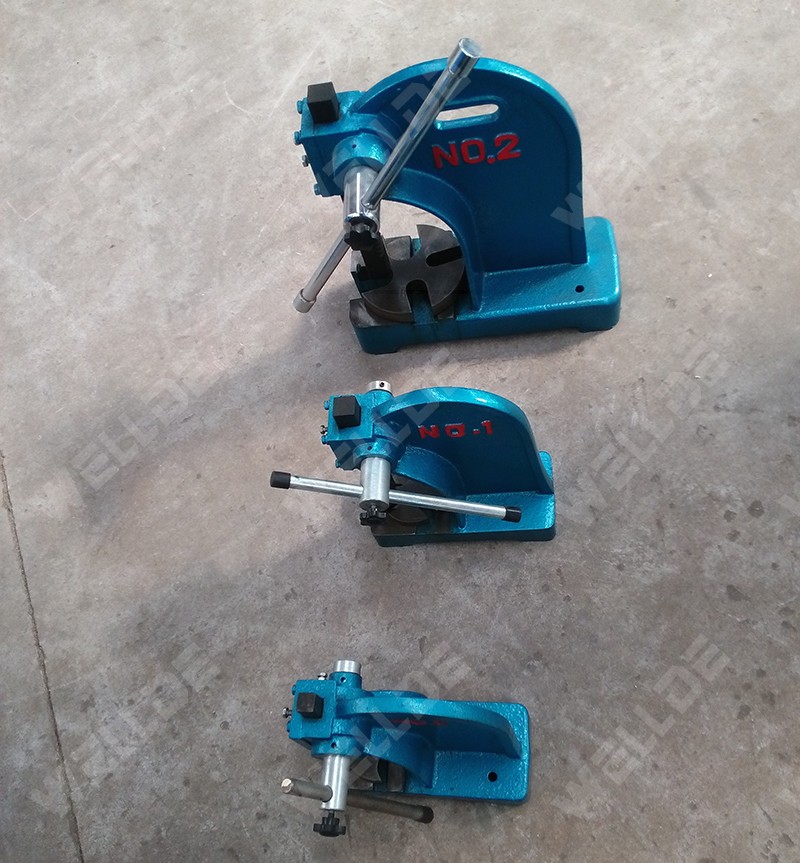

Manual stamping mode and die drawing machine AP-1/2AP-1AP-2AP-3AP-3AP-5

Manual stamping mode and die drawing machine AP-1/2AP-1AP-2AP-3AP-3AP-5

Product Introduction:

Manual press machines are mainly used for disassembling gears and shaft sleeves, as well as correcting deformed parts. When choosing a press, we should try using multi-purpose equipment. The use of the press varies depending on the diameter of the calibrated workpiece. When correcting small and long workpieces, manual presses are often used. The manual press has a simple structure and is easy to operate

specifications:

MODEL	Capacity	Max Height& Dia(mm)	LargestArbor(mm)	Ram Square(mm)	Press Ht(mm)	Base Size(mm)	N.WIG.WN(kg)	Packing Dim(cm)
AP-1/2	1/2Ton	90x80	26	19x19	280	240x170	11/12	26x12x29
AP-1	1 Ton	110x100	29	25x25	355	268x190	15/16	29x14x35
AP-2	2 Ton	180 x123	40	32x32	445	432x260	36/38	46x20x45
AP-3	3 Ton	285x 163	44	38x38	615	455x300	63/65	46x24x64
AP-5	5 Ton	400x226	70	50x50	815	645x176	155/166	76x37x95
