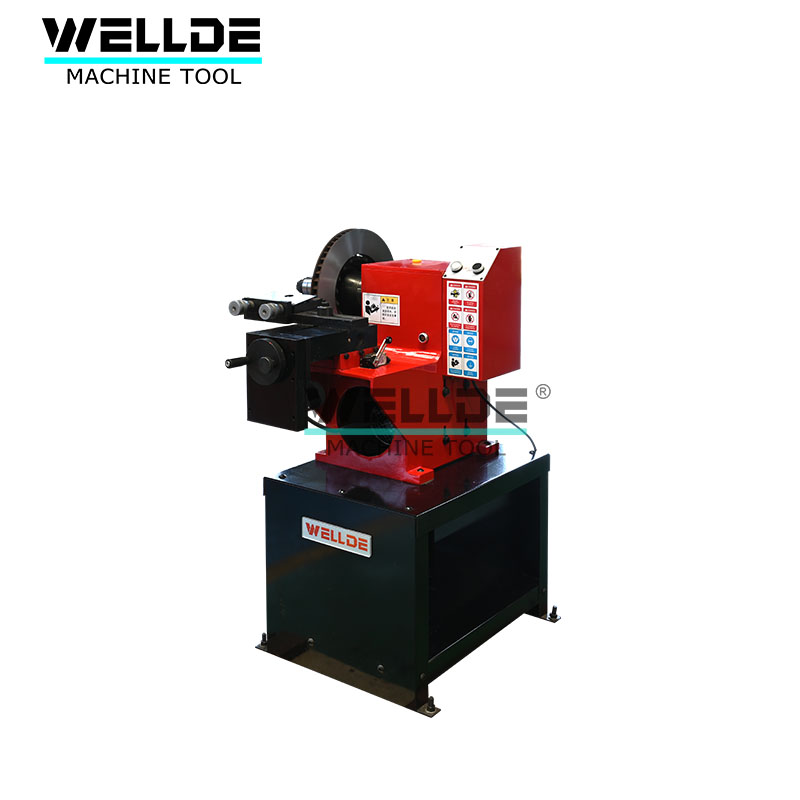

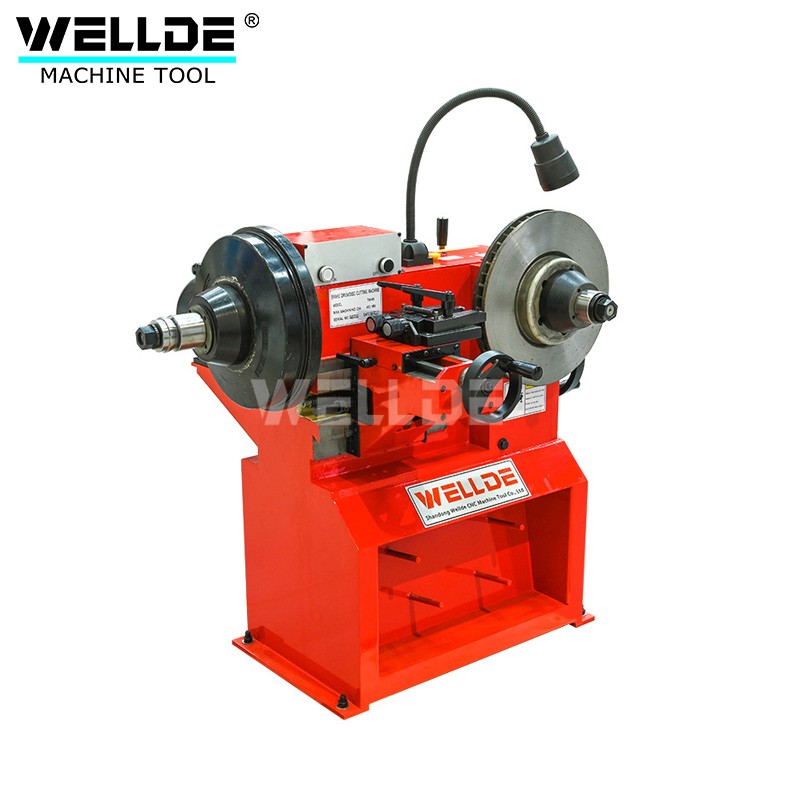

T8445A Brake drum disc lathe
Product Introduction：
Upgraded version of T8445.
Higher spindle speed and feed rate result in higher efficiency.

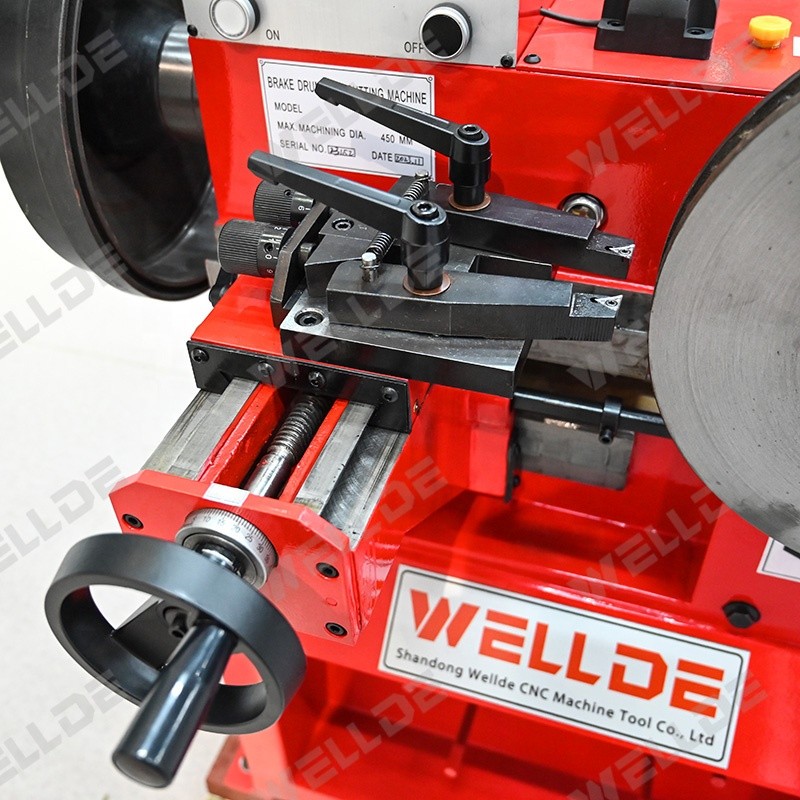

Can simultaneously turn two surfaces of the brake disc. Optimize the tool holder for greater convenience.
specifications：
| Item | T8445 | T8445A | |
| Brake drum diameter | mm | 180-450 | 180-450 |
| Brake disc diameter | mm | ≤400 | ≤400 |
| Working travel | mm | 170 | 170 |
| Spindle rotation speed | rpm | 30,52,85 | 30,54,80 |
| Feeding capacity | mm/r | 0.16/0.30 | 0.16/0.30 |
| Main motor | Kw/rpm | 1.1/1400 | 1.1/4000 |
| Size | mm | 690*890*880 | 690*890*880 |
| Net weight | Kg | 320 | 320 |
| Power | 220v 50hz 3 phase | 220v 50hz 3 phase | |
