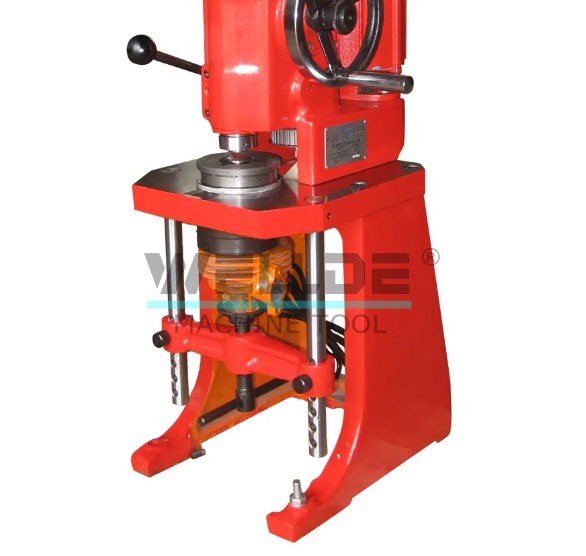

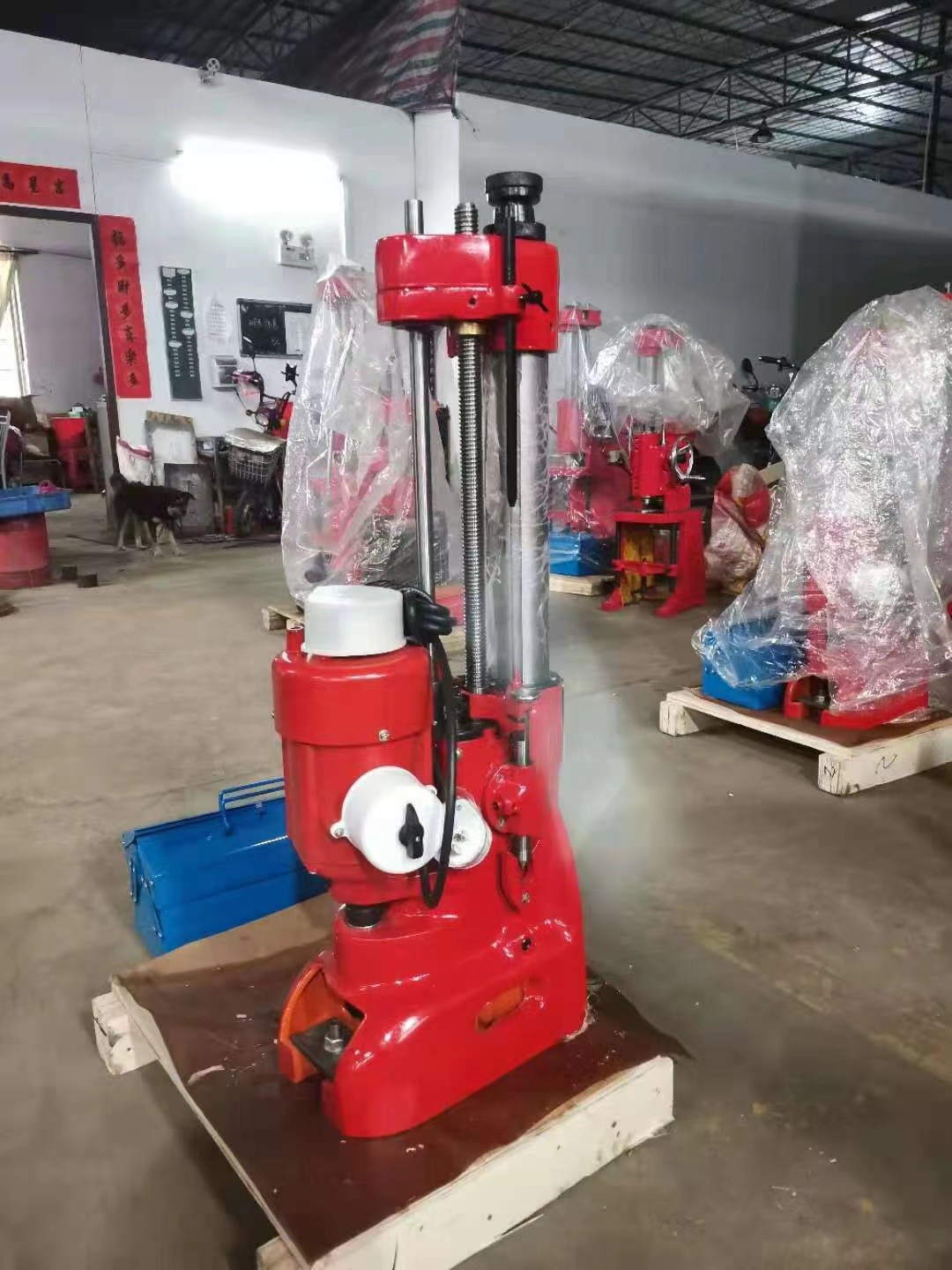

WELLDE Cylinder Boring Machine T8014A T8016A

Boring diameter

Φ65-Φ140mm

Φ80-Φ165mm

Max.boring depth

300mm

400mm

Spindle speed

250,380 r/min

200,300 r/min

Spindle feed

0.11 mm/r

0.12 mm/r

Spindle rapid reset

636 mm/min

780 mm/min

Voltage

220V / 380V

220V / 380V

Motor Output

0.25/0.37kw

0.25/0.37kw

Motor speed

1440 r/min

1440 r/min

Overall dimensions

320×330×850 mm

320×330×850 mm

Package size

540x470x1030 mm

500x490x1270 mm

Machine weight

62kg

85kg
