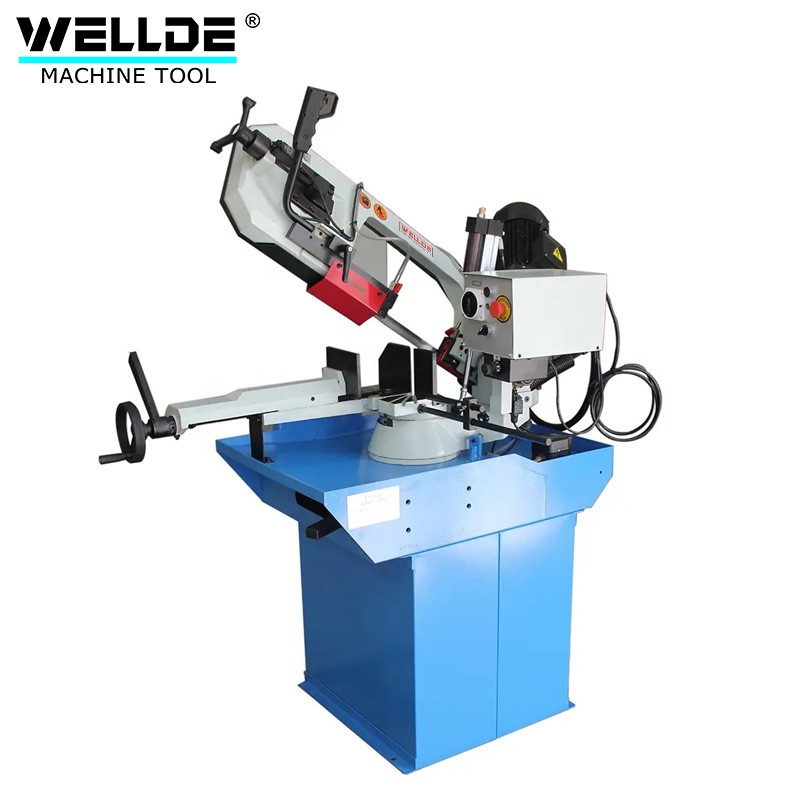

BS-280G metal cutting band saw
Product Introduction:
1.After the sawing is completed, it will automatically stop and raise the saw frame to achieve efficient operation
2. The saw band can adjust the load to ensure that the band saw does not fatigue and the feed rate changes, and can be adjusted to achieve the best cutting effect.
3.When the sawing machine can cut at a cutting speed based on the structural characteristics of the material, the saw blade effectively improves its service life.
4. Hydraulic tensioning saw blade (easy to operate, improves work efficiency)
5. Automatic stop of saw blade breakage (safe)
specifications:
Model | BS-280G | |
Capacity | Circular @90° | 220mm(8.6”) |
Rectangular @90° | 250*155mm(10"*6.1”) | |
Circular @60° | 100mm(4") | |
Rectangular @60° | 80x95mm(3.1"x3.7") | |
Circular @45° | 160mm(6”) | |
Rectangular @45° | 160*110mm(6.3*4.3”) | |
Blade speed | @50Hz | 40/80MPMM |
Blade size | 27*0.9*2450mm | |
Motor power | 0.75/1.1kw /1.5HP(3PH) | |
Drive | Gear | |
Packing size | 133*80*105cm(body)67*40*62cm(stand) | |
N.WIG.W | 254/287kg |
