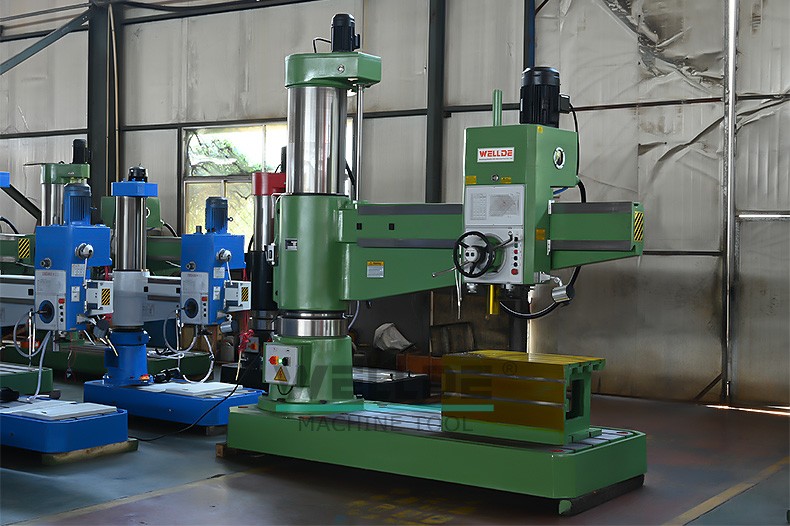

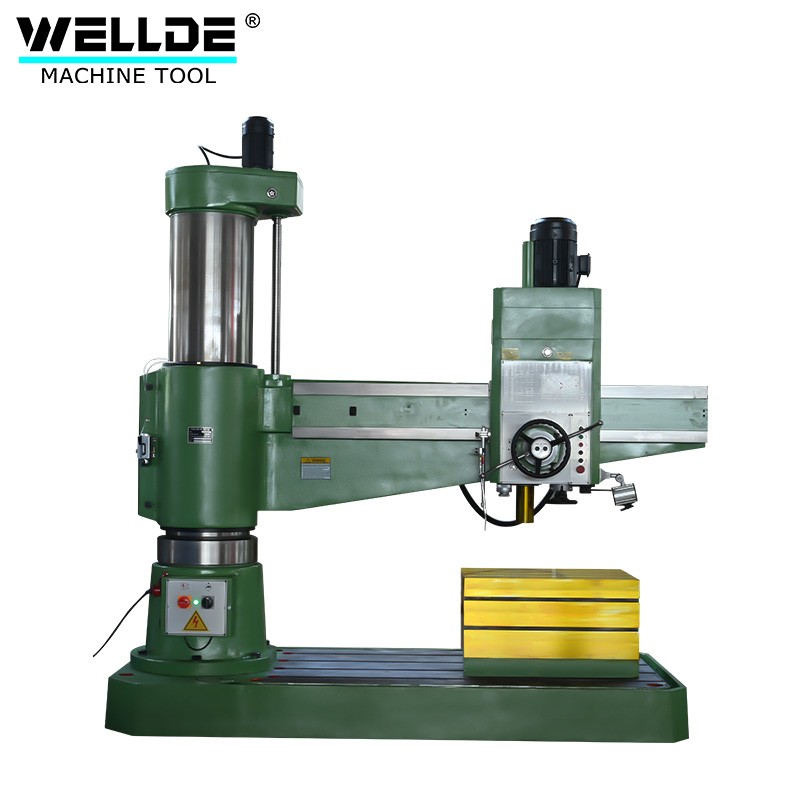

Z3050x16 vertical metal arm drilling machine

Product Introduction：

The radial drilling machine is mainly composed of a base, inner column, outer column, rocker arm, spindle box, worktable, etc. The inner column is fixed at one end of the base, and the outer column is sleeved on the outside. The outer column can rotate 360 degrees around the inner column. One end of the rocker arm is a sleeve designed to move up and down on the outer column. Because the screw is connected to the outer column and the lifting nut is fixed to the rocker arm, the rocker arm cannot rotate around the outer column and can only rotate together with it. The spindle box is a composite component consisting of a main drive motor, spindle and spindle transmission mechanism, feed and transmission mechanism, machine tool control mechanism, etc. The spindle box is installed on the horizontal guide rail of the rocker arm and can be moved along the rocker arm in the horizontal guide rail by hand wheel operation.

specifications：

Specification	THZ3050×16	THZ3063×16	THZ3063×18
Max. drilling diameter (mm)	Cast iron 50 Steels 45	Cast iron 60 Steels 55	Cast iron 60 Steels 55
Distance between spindle axis and column (mm)	350-1730	350-1730	350-1730
Distance between spindle nose and working surface of base plate (mm)	450-1675	450-1675	450-1675
Spindle travel (mm)	220	315	315
Spindle taper (morse)	MT.5	MT.5	MT.5
Range of spindle speeds (r.p.m)	34-1280	34-1280	34-1280
Number of spindle speeds	16	16	16
r.p.m range of spindle feeds	0.1-1	0.1-1	No previous NEXT：BS-280G metal cutting band saw INQUIRY WhatsApp: Email: Content: Verification code: Send  Reset RELATED PRODUCTS WELLDE ZJ5120 Desktop Drilling Machine WELLDEZJ5132 vertical bench drill WELLDE- Vertical Small Drilling Machine Categories Drilling milling and grinding machine + drilling machine milling machine grinder Integrated drilling and milling attachment + Lathe + Manual lathe Small lathe combined lathe CNC lathe Other products + Riveting machine Hydraulic press + H-type manual press machine H-type electric press machine H-type manual and electric integrated C-type electric press machine Four column electric press machine Automotive repair equipment + Brake disc drum lathe boring machine press Latest News WELLDE WM210V-400 Machine Tool FG500 flywheel grinder What's your main products of y How can I choose the most suit OEM Service? Contact Us Contact: Mike Phone: 18963234620 E-mail: welldecnc@foxmail.com Whatsapp:18963234620 Add: No. 6 Quantou Road, Mengzhuang Development Zone, Zaozhuang City, Shandong Province   online service     18963234620    welldecnc@foxmail.com    We chat
