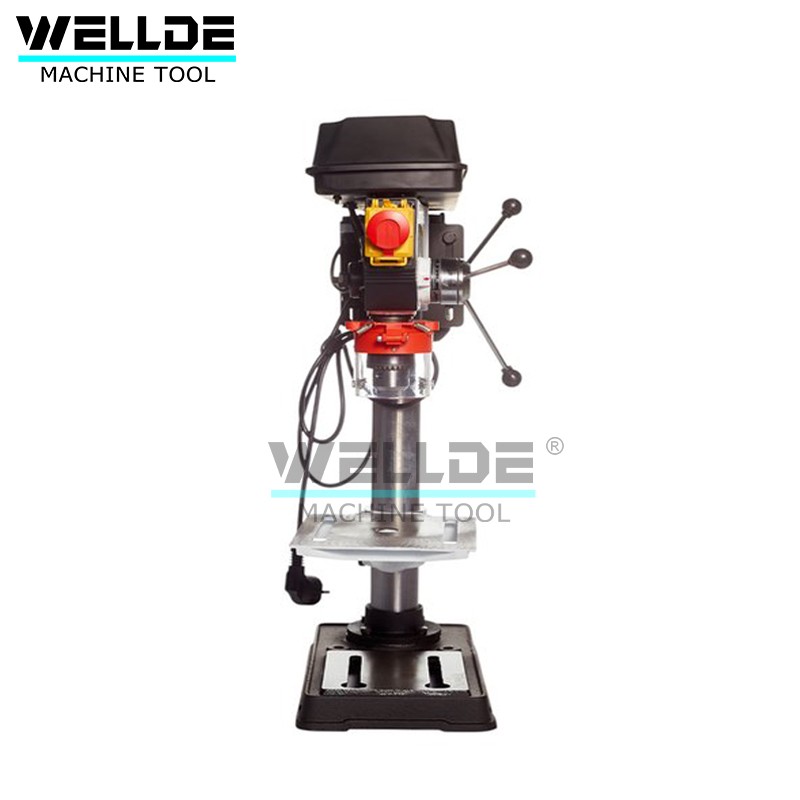

Vertical Small Drilling Machine ZJ4120
Product Introduction:
ZJ4120 floor standing manual desktop drilling machine, spindle stroke 85mm
Precision machining workbench
Million fold validated quality
Smooth and powerful high-quality aluminum electric motor

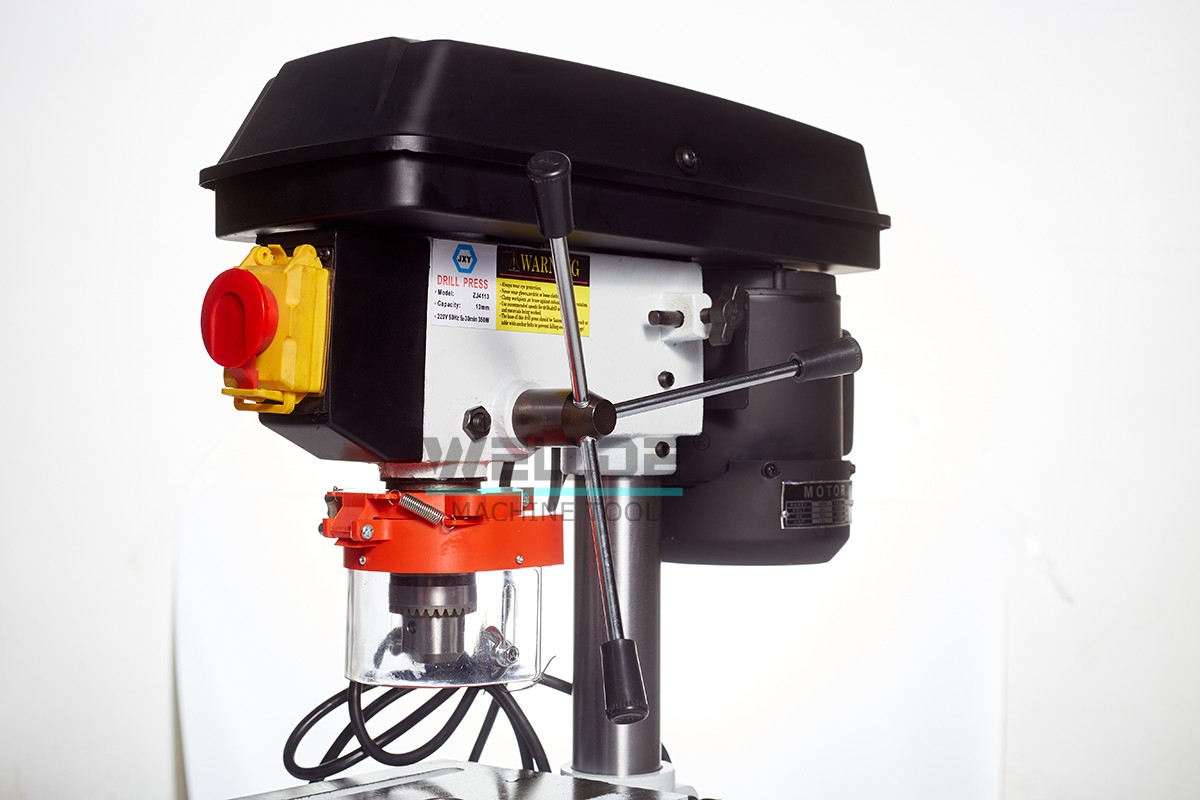

V-belt cover with safety switch
specifications:
| Model | ZJ4120 |
| Max Drilling Diameter | Ø20mm(3/4’’) |
| Motor Power | 550/750w |
| Chuck Capacity | 5-20mm |
| Spindle Travel | 85mm |
| Class Of Speed | 16 |
| Speed50/60Hz | 180~2770/220~3320 rpm |
| Spindle Taper | MT2 |
| Max distance from spindle axis to surface of column | 180mm |
| Max distance from spindle end to surface of table | 620mm |
| Max distance from spindle end to surface of base | 810mm |
| Swing | 360mm |
| Table Size | 290×290mm |
| Base Size | 460×272mm |
| Column Diameter | Ø72mm |
| Height | 1200mm |
| Net Weight/ Gross Weight | 58.0/60.0kg |
| Packing Size | 1010×490×275mm |
