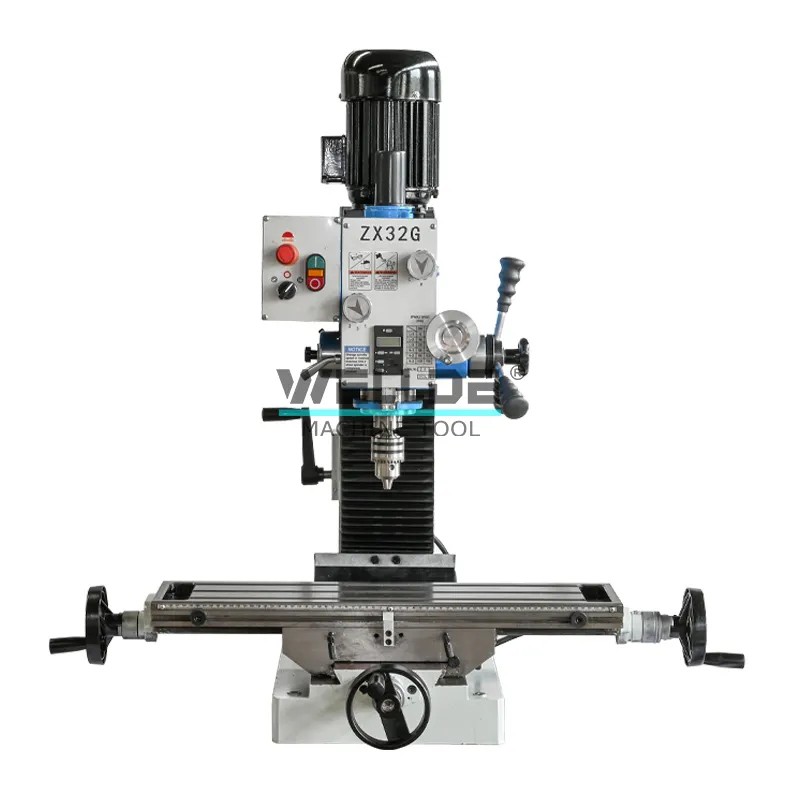

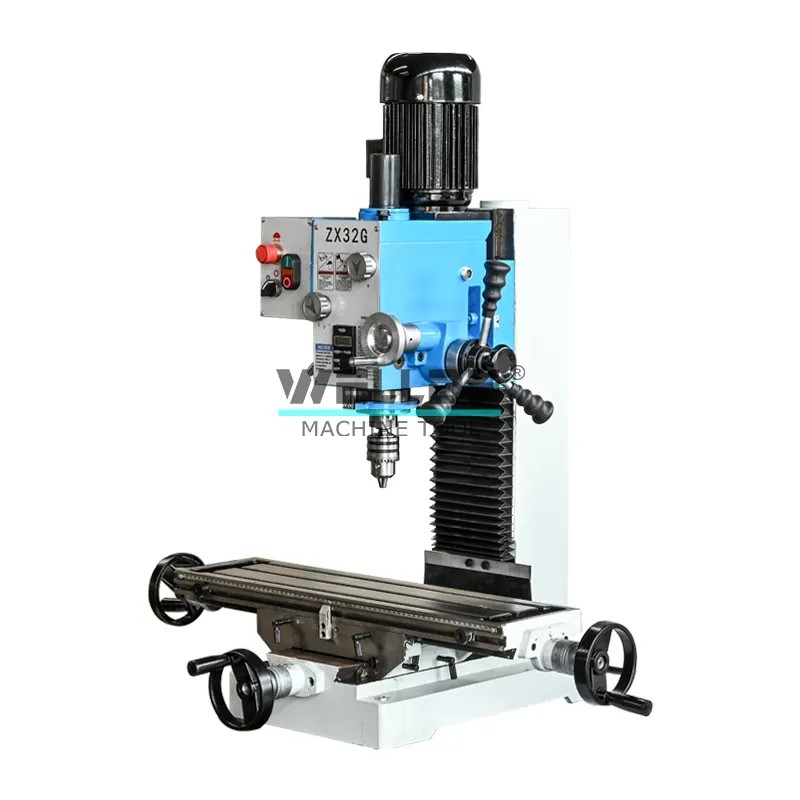

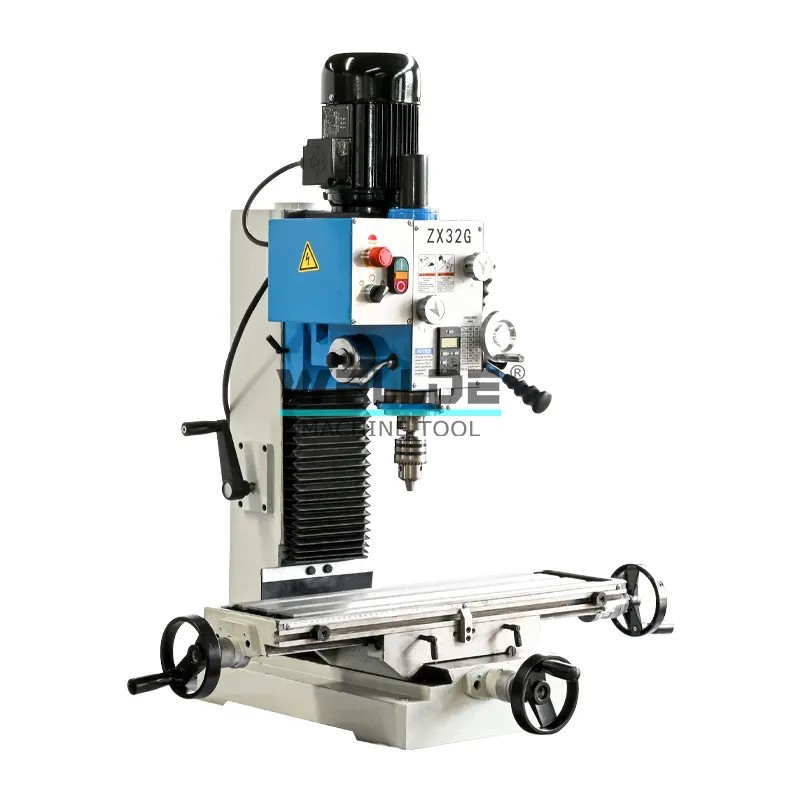

ZX32G MILNG MACHINE

Product Introduction：

Features of milling machine ZX32G: Ultra precision grinding of all steel spindle High strength

square pillar Good strength grinding teeth, low noise The spindle box tilts left and right Wide

electrical box, easy to operate High precision manual paper feeder Depth scale mark, easy to

operate and read

specifications：

Specification	ZX32G
Max drilling capacity	32mm
Max tapping capacity	16mm
Max face milling capacity	63mm
Table size	700×190mm
Spindle taper	MT3/R8
X-axis travel	410mm
Y-axis travel	205mm
Z-axis travel	310mm
Spindle travel	85mm
T-slot size	12mm
Spindle speed range	95-1420rpm
Headstock tilt left and right	90 degree
Column size	150×130×690mm
Base size	550×340mm
Max. distance from spindle center to column	203mm
Max. distance from spindle center to table	336mm
Motor power	750w
N.W/G.W	170/205kgs
