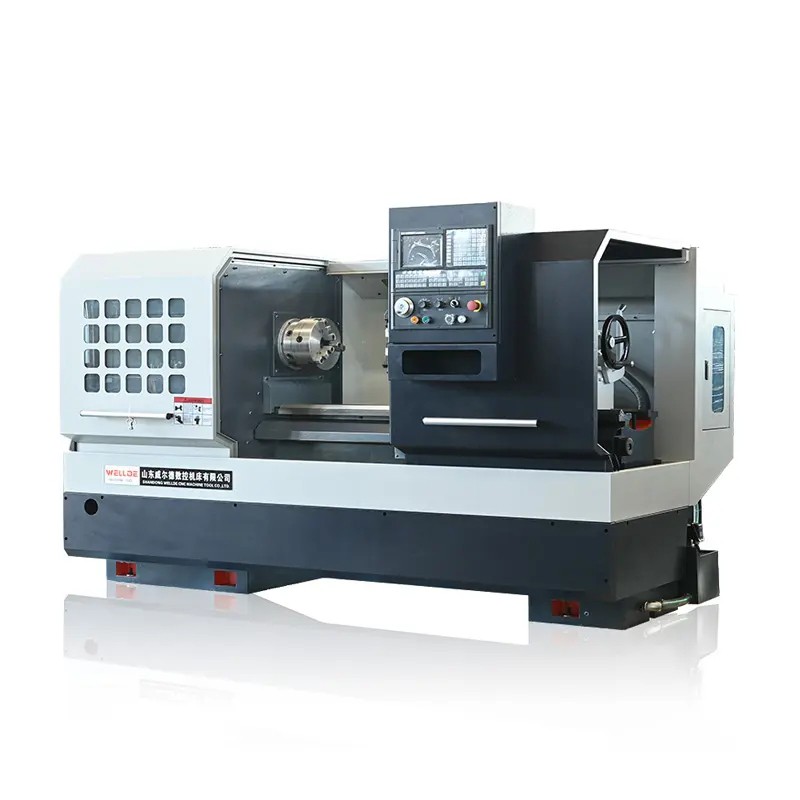

CA6140 Saddle Lathe

Product Introduction:

1 Machine tool head box and bed. talstock, Supporing plate, etc. the combination of sunace beween manual scraping. machine to undergo a rioorous

inspection, effectively ensure the machine tool accuracy and stability.

2 Machine adopts high strength cast iron, coper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm

effectively improves the abradability and stability of the machine.

3 The machine tool bed head box lubrication uses the pump to cary on the circulation forced lubrication,in view of the south hot weather, has quaranteed thebed head box cleanliness and the heat radiation characteristic, has efiectively extended the bearing and gear's senvice life4 Wafanadian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can efectivelvimprove the hardness of the gears, to reduce noise of the machine5 Machine tool uses the domestic brand lead screw, the sik mother uses the high qually bronze alloy to guarantee the wear-resisting property and the precision

maintenance.

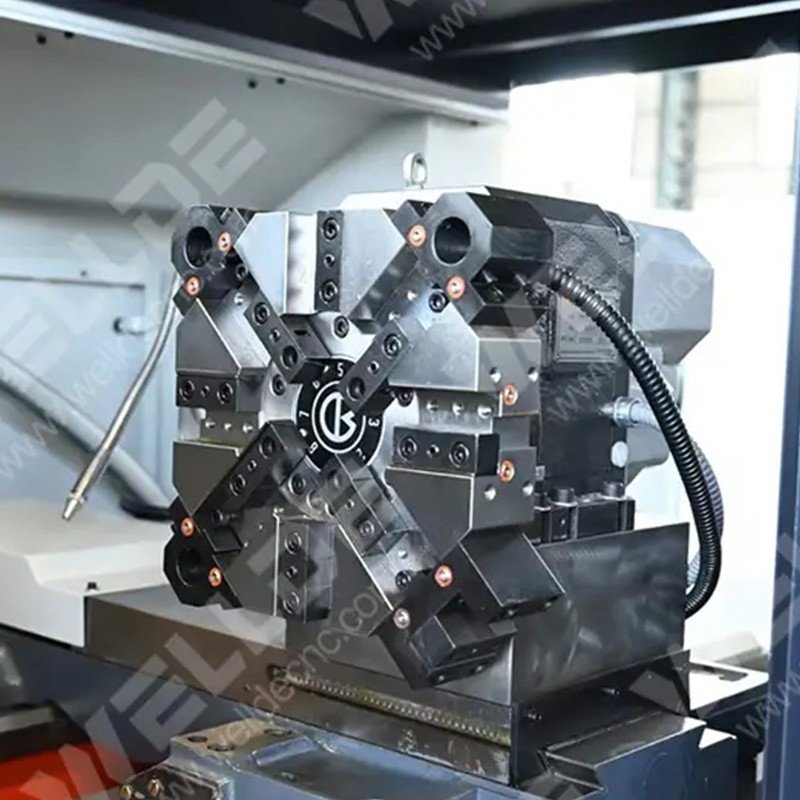

6 The machine adopts high strength four station turret shank size: 25x25mm.

specifications:
