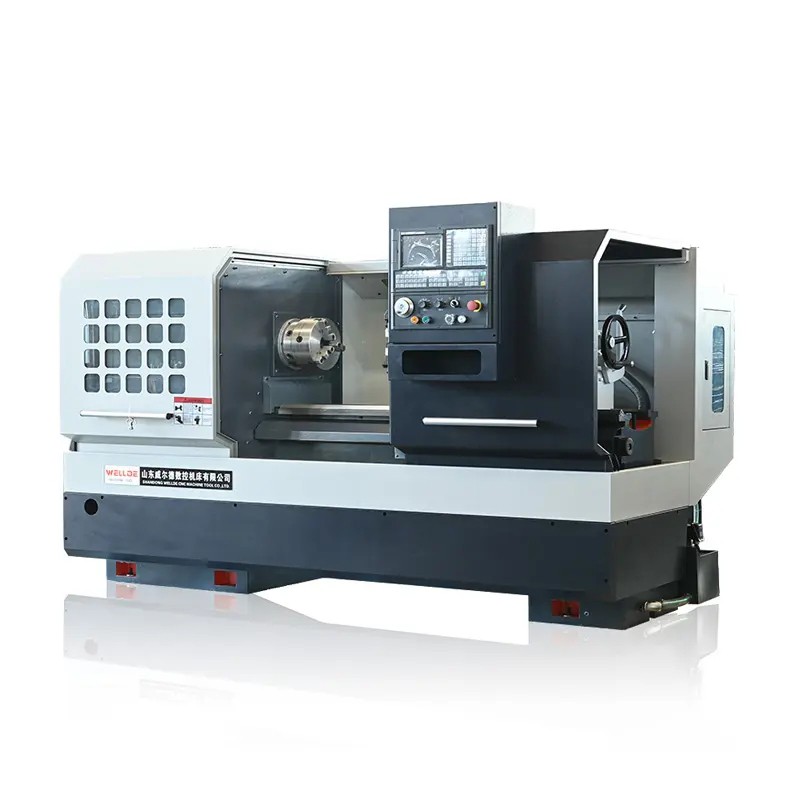

CAK6150 CNC lathe
Product Introduction:
The machine through the numerical control system, this machine could process different inner bore,
ex-circle, circular conical surface and screw thread, especially suitable for the small and
middle-sized shaft and plate work piece from rough processing to finish processing in batch. It has
advantages like higher automaticity, simpler programming and higher accuracy.
specifications:
| SPECIFICATIONS | Units | CAK6140 CAK6140B CAK6140C | CAK6150 CAK6150B CAK6150C | CAK6161 CAK6161B CAK6161C |
| Swing over bed | mm | 400 | 500 | 610 |
| Distance between centers | mm | 750/1000/1500/2000/3000 | 750/1000/1500/2000/3000 | 750/1000/1500/2000/3000 |
| Spindle bore | mm | 52(80 for B)[105 for C] | 52(80 for B)[105 for C] | 52(80 for B)[105 for C] |
| Spindle bore taper | MT6(φ90 1:20 for B)[φ113 1:20 for C] | MT6(φ90 1:20 for B)[φ113 1:20 for C] | MT6(φ90 1:20 for B)[φ113 1:20 for C] | |
| Spindle nose type | C6(D8 for B)[D8 for C] | C6(D8 for B)[D8 for C] | C6(D8 for B)[D8 for C] | |
| Spindle speed steps | Manual 3 steps (Optional: stepless) | Manual 3 steps (Optional: stepless) | Manual 3 steps (Optional: stepless) | |
| Spindle speed range | rpm | 21-150,66-500,162-1500 (Optional: 100-1600 ) | 21-150,66-500,162-1500 (Optional: 100-1600 ) | 21-150,66-500,162-1500 (Optional: 100-1600 ) |
| Turret/tool post | Eletric 4 position | Eletric 4 position | Eletric 4 position | |
| Tool size | mm | 25 x 25 | 25 x 25 | 25 x 25 |
| X axis travel | mm | 200 | 250 | 310 |
| Z axis travel | mm | 750/1000/1500/2000/3000 | 750/1000/1500/2000/3000 | 750/1000/1500/2000/3000 |
| X axis rapid traverse | mm/min | 6000 | 6000 | 6000 |
| Z axis rapid traverse | mm/min | 10000 | 10000 | 10000 |

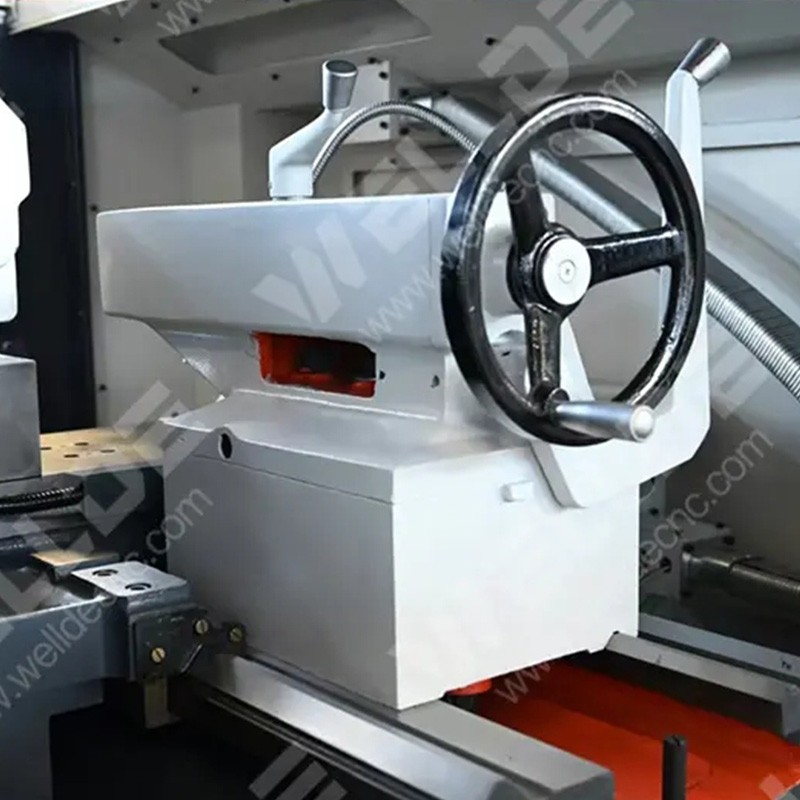

| Tailstock quill diameter | mm | 75 | 75 | 75 |
| Tailstock quill taper | MT5 | MT5 | MT5 | |
| Tailstock quill travel | mm | 150 | 150 | 150 |
| Main spindle motor | kw | 7.5 | 7.5 | 7.5 |
| Coolant pump motor | kw | 0.125 | 0.125 | 0.125 |
| Weight for 750 | 2450 | 2500 | 2550 | |
| Weight for 1000 | 2550 | 2600 | 2650 | |
| Weight for 1500 | 2650 | 2700 | 2750 | |
| Weight for 2000 | 3050 | 3150 | 3250 | |
| Weight for 3000 | 3850 | 3950 | 4050 | |
| Dimension for 750 | mm | 2550x1650x1700 | 2550x1650x1750 | 2550x1700x1800 |
| Dimension for 1000 | mm | 3250x1650x1700 | 3250x1650x1750 | 3250x1700x1800 |
| Dimension for 1500 | mm | 3250x1650x1700 | 3250x1650x1750 | 3250x1700x1800 |
| Dimension for 2000 | mm | 3700x1650x1700 | 3700x1650x1750 | 3700x1700x1800 |
| Dimension for 3000 | mm | 4710x1650x1700 | 4710x1650x1750 |
