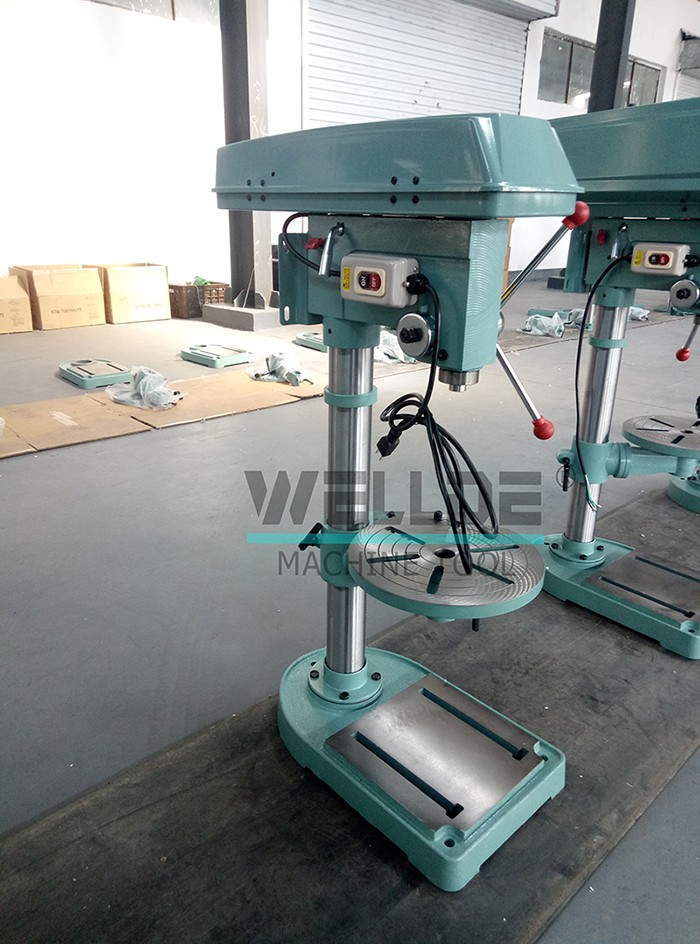

WELLDE medium-sized ZJ5125 drilling machine

Max Drilling Diameter

Ø16mm(5/8’’)

Motor Power

1100W1500W

Chuck Capacity

5~20mm

Spindle Travel

120mm

Class Of Speed

12

Speed50/60Hz

150~2450/180~2940 rpm

Spindle Taper

MT3

Max distance from spindle axis to surface of column

220mm

Max distance from spindle end to surface of table

765mm

Max distance from spindle end to surface of base

1225mm

Swing

440mm

Table Size

350×350mm

Base Size

470×360mm

Column Diameter
